A800T

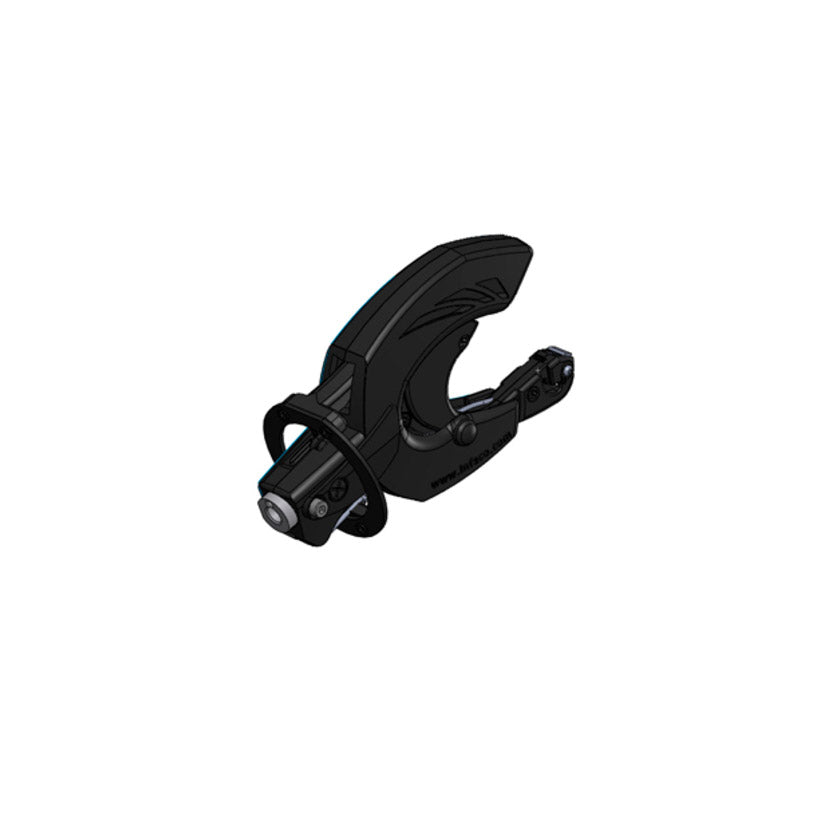

A3MV2 replacement head. Compatible with 12V and 48V tying machines.
| A3MV248 (48V) | A3MV2 (12V) | |
| WEIGHT (MACHINE ONLY) | 1.4 lb | |
| BATTERY VOLTAGE | 48V | 12V |
| BATTERY AUTONOMY | 12,500 ties | 7,000 ties |
| CHARGE TIME | 1,5 hours | 5 hours |
| WEIGHT (BATTERY ONLY) | 1,8 lb | 1,4 lb |
| WEIGHT (WIRE ROLL) | 100 gr / 3,5 oz | |
| OPENING DIAMETER | 30 mm / 1.18" | |
| WIRE DIAMETERS AVAILABLE | 0.40, 0.46, 0.50, 0.55mm | 0.40, 0.46, 0.50mm |
| CHARGER FEED VOLTAGE | 230V 50Hz / 110V 60Hz | |
Adjusting the tie size is separate from setting the number of rotations the head makes to twist the tie shut. This increases the versatility of the tool by making it possible to make a loose tie that’s twisted shut with many rotations and vice versa.
Choose from these available wire gauges
depending on your needs:
0.40 mm / approximately 1000 ties per reel
0.46 mm / approximately 900 ties per reel
0.50 mm / approximately 650 ties per reel
0.55 mm / approximately 500 ties per reel (only compatible with 48V tying machine)
Located on the tool and easy to access, the wire roll can be changed in just a few seconds.
